hlines

hlines(arg; decorated=(...), xmin=NaN, xmax=NaN, percent=false, kwargs...)

Plots one or a collection of horizontal lines with eventual decorations

xmin & xmax: Limit the horizontal lines to start a xmin and/or end at xmax
percent: If true the xmin & xmax are interpreted as fractions of the figure height.
B or axes or frame
Set map boundary frame and axes attributes. Default is to draw and annotate left, bottom and vertical axes and just draw left and top axes. More at [frame](../common_opts/opt_B.html)
J or proj or projection : – proj=
Select map projection. More at [proj](../common_opts/opt_J.html)
R or region or limits : – limits=(xmin, xmax, ymin, ymax) | limits=(BB=(xmin, xmax, ymin, ymax),) | limits=(LLUR=(xmin, xmax, ymin, ymax),units=“unit”) | …more
Specify the region of interest. More at [limits](../common_opts/opt_R.html). For perspective view view, optionally add zmin,zmax. This option may be used to indicate the range used for the 3-D axes. You may ask for a larger w/e/s/n region to have more room between the image and the axes.
W or pen=pen
Set pen attributes for the arrow stem [Defaults: width = default, color = black, style = solid]. See [Pen attributes](../common_features/pens.html) and [Vector attributes](../common_features/arrows_control.html) for arrow line terminations.
U or time_stamp : – time_stamp=true | time_stamp=(just=“code”, pos=(dx,dy), label=“label”, com=true)
Draw GMT time stamp logo on plot. More at [timestamp](../common_opts/opt_U.html)
V or verbose : – verbose=true | verbose=level
Select verbosity level. More at [verbose](../common_opts/opt_V.html)
X or xshift or x_offset : xshift=true | xshift=x-shift | xshift=(shift=x-shift, mov=“a|c|f|r”)
Shift plot origin. More at [xshift](../common_opts/opt_X.html)
Y or yshift or y_offset : yshift=true | yshift=y-shift | yshift=(shift=y-shift, mov=“a|c|f|r”)
Shift plot origin. More at [yshift](../common_opts/opt_Y.html)
figname or savefig or name : – figname=name.png
Save the figure with the figname=name.ext where ext chooses the figure image format.

Examples

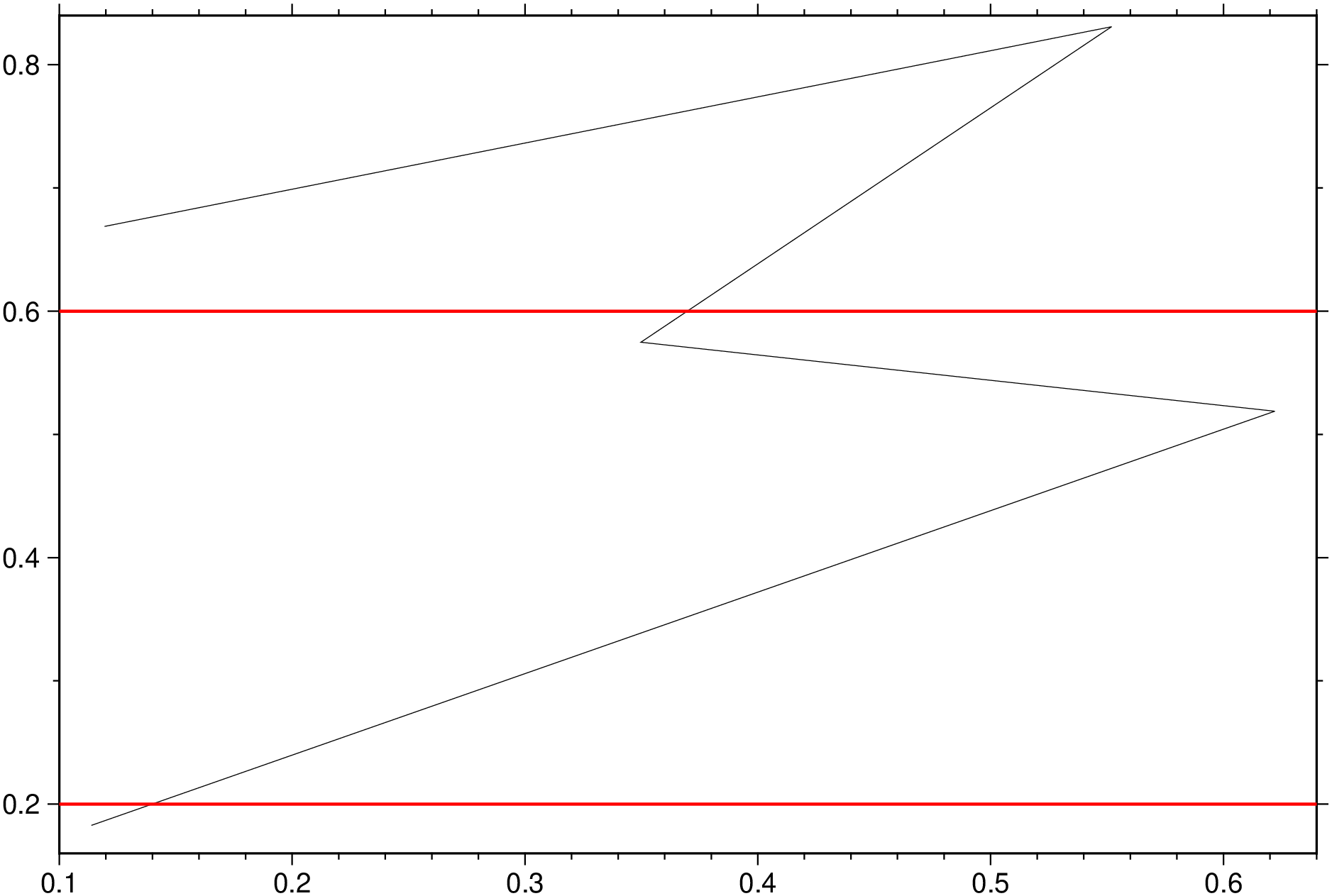

using GMT

plot(rand(5,3))
hlines!([0.2, 0.6], pen=(1, :red), show=true)
